Print Preview

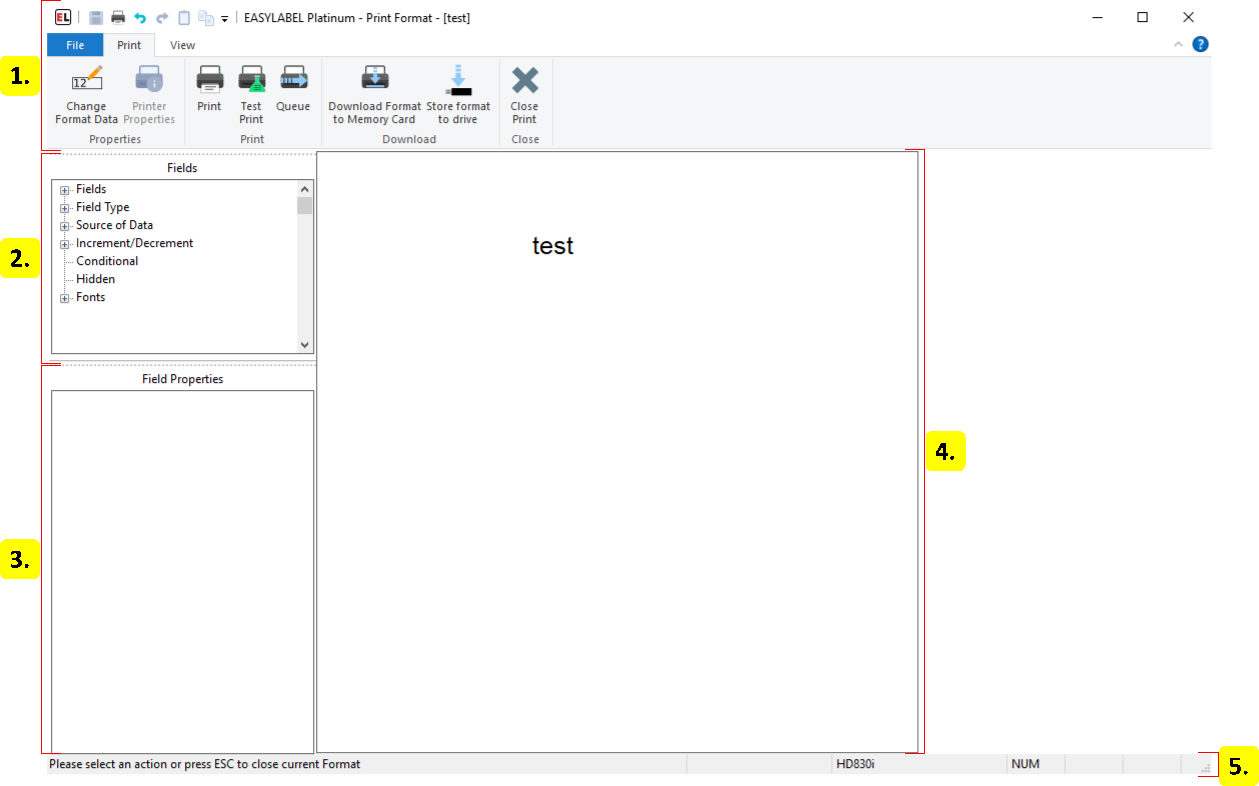

Layout

1. Ribbon

2. Field Tree

3. Field Properties

4. Label Window

5. Status Bar

Ribbon

The ribbon contains controls used to print or download labels. Go to Ribbon UI for more information on how ribbons work.

Tabs

• File Menu
• Print Tab
• View Tab

Field Tree

Provides a list of fields in the label grouped together by common properties. Groups can be expanded or collapsed and field names can be clicked or right clicked on to select or edit their data.

Field Properties

The field properties window displays the properties of a field when a field is selected.

Label Window

The label window displays a preview of the first label that will be printed. Click on a field to change its data.

Status Bar

1. Instructions

   Instructional messages for the current action are displayed here.

2. Cursor Coordinates

   The x and y coordinates of the cursor relative to the top left of the label window.

3. Printer Model

   The model name of the printer the format is designed for.

4. Number Lock

   Displayed when the keyboards number lock button is enabled.

5. Caps Lock

   Displayed when the keyboards caps lock button is enabled.

6. Scroll Lock

   Displayed when the keyboards scroll lock button is enabled.

Dialogs

• Variable Data
• Print Request
• Download Format to Memory Card
• Store Format To Drive
